Sandvik Coromant

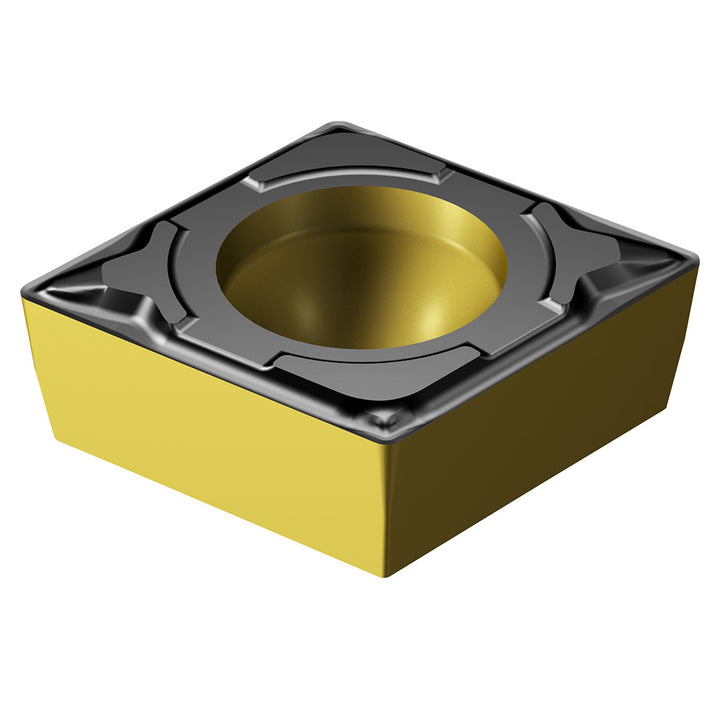

CPMT 09 T3 08-PF 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8020990
MFR# 8020990ISO/ANSI# CPMT 09 T3 08-PF 4415Cat# CPMT 09 T3 08-PF 4415Series CPMT-PF
$17.15List $22.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8020990 is a CPMT 09 T3 08-PF 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Included angle80
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCPMT
Insert thickness0.1563
Iso codeCPMT 09 T3 08-PF 4415
Manufacturers catalog numberCPMT 09 T3 08-PF 4415
Manufacturer grade4415
Primary workpiece materialSteel
Tolerance codeM
