Sandvik Coromant

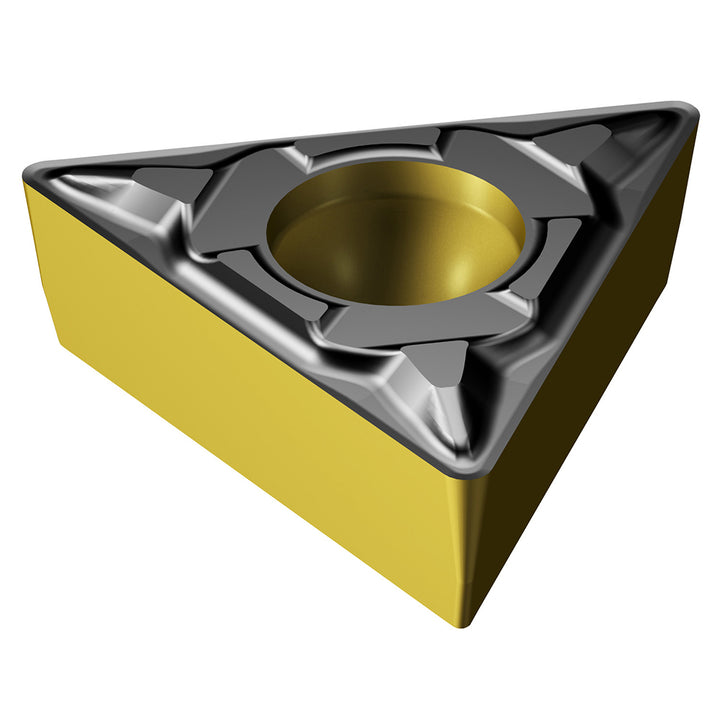

TPMT 09 02 04-PF 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8020999
MFR# 8020999ISO/ANSI# TPMT 09 02 04-PF 4415Cat# TPMT 09 02 04-PF 4415Series TPMT-PF
$13.98List $17.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8020999 is a TPMT 09 02 04-PF 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Inscribed circle0.2188
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code1.81.5
Insert styleTPMT
Insert thickness0.0938
Iso codeTPMT 09 02 04-PF 4415
Manufacturers catalog numberTPMT 09 02 04-PF 4415
Manufacturer grade4415
Primary workpiece materialSteel
Tolerance codeM
