Sandvik Coromant

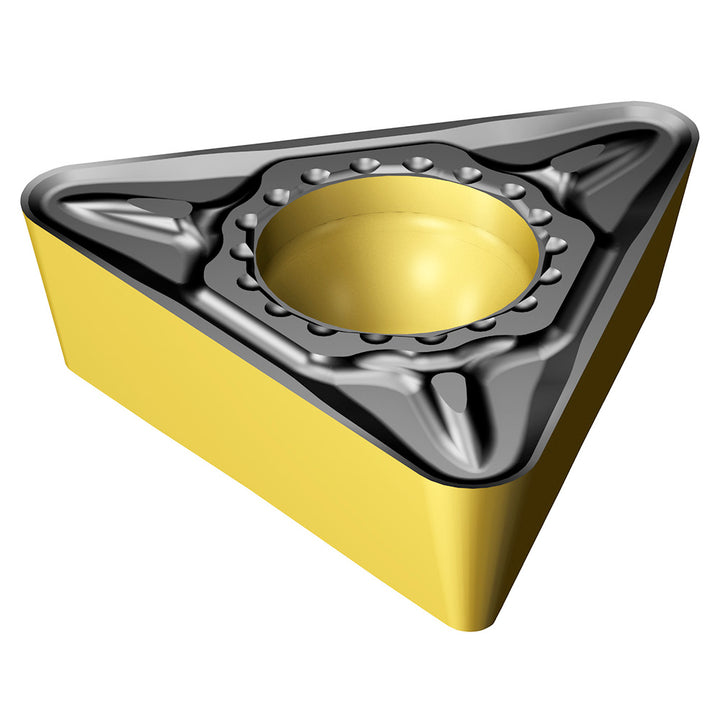

TPMT 11 03 04-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021003
MFR# 8021003ISO/ANSI# TPMT 11 03 04-PM 4415Cat# TPMT 11 03 04-PM 4415Series TPMT-PM
$18.23List $23.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
Grade4415
CoatingTiCN
Description
The Sandvik Coromant 8021003 is a TPMT 11 03 04-PM 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert size code221
Insert styleTPMT
Insert thickness in1/8
Iso codeTPMT 11 03 04-PM 4415
Manufacturers catalog numberTPMT 11 03 04-PM 4415
Manufacturer grade4415
Relief angle11
Tolerance codeM
