Sandvik Coromant

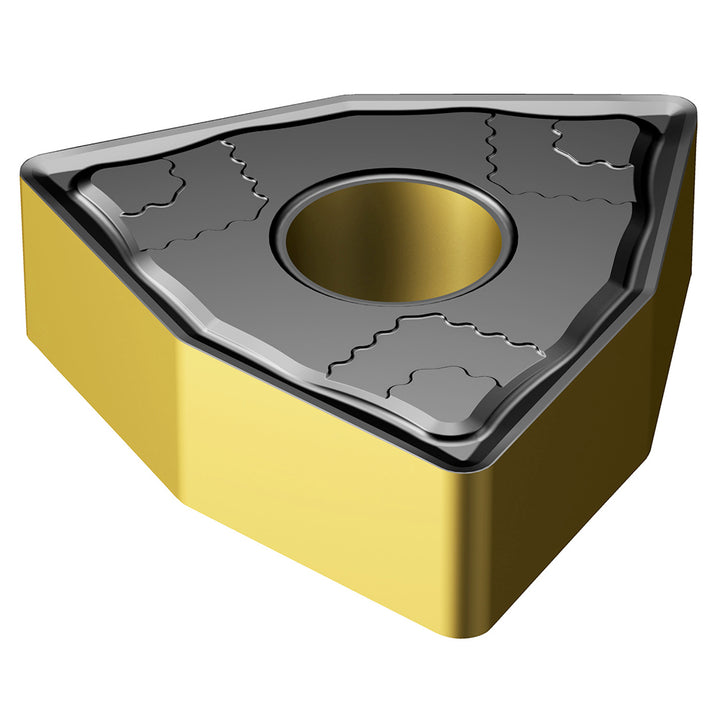

WNMG 08 04 04-PMC 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021112
MFR# 8021112ISO/ANSI# WNMG 08 04 04-PMC 4415Cat# WNMG 08 04 04-PMC 4415Series WNMG-PMC
$22.83List $29.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021112 is a WNMG 08 04 04-PMC 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 04-PMC 4415
Manufacturers catalog numberWNMG 08 04 04-PMC 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
