Sandvik Coromant

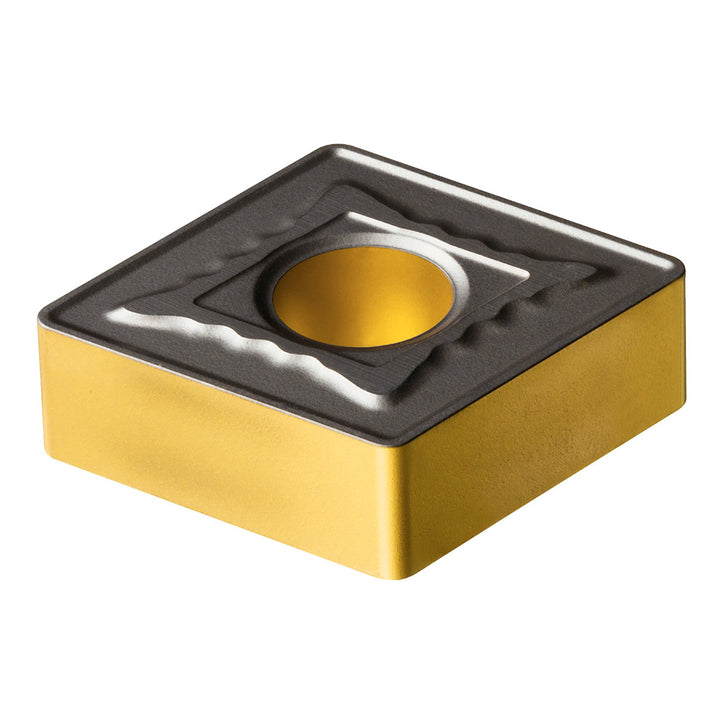

CNMG 16 06 12-MR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021121
MFR# 8021121ISO/ANSI# CNMG 16 06 12-MR 4415Cat# CNMG 16 06 12-MR 4415Series CNMG-MR (ISO P)
$30.30List $38.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021121 is a CNMG 16 06 12-MR 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1606
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 16 06 12-MR 4415
Manufacturers catalog numberCNMG 16 06 12-MR 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
