Sandvik Coromant

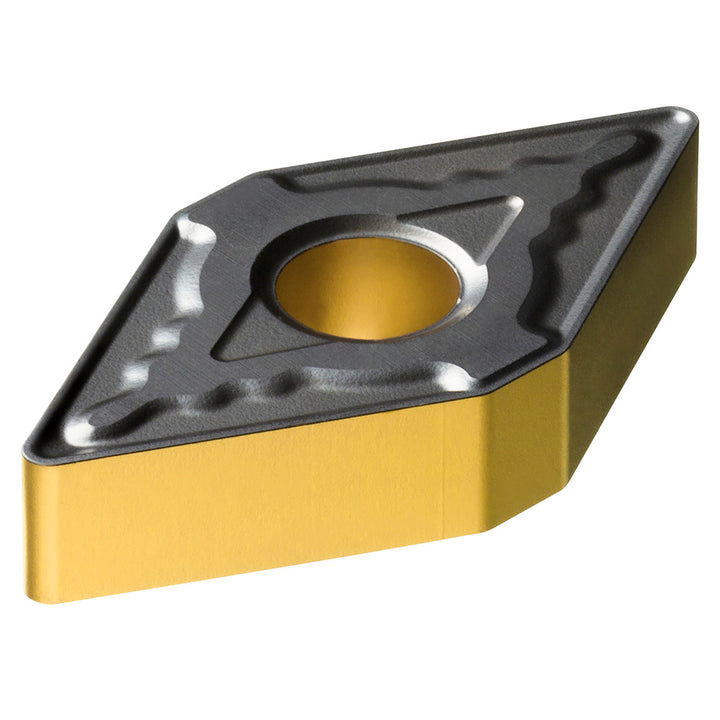

DNMG 15 04 12-MR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021127
MFR# 8021127ISO/ANSI# DNMG150412Cat# DNMG 15 04 12-MR 4415Series DNMG-MR (ISO P)
$26.15List $33.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021127 is a DNMG 15 04 12-MR 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Ansi insert codeDNMG433
Ansi size code433
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 12-MR 4415
Iso insert codeDNMG150412
Iso size code150412
Manufacturers catalog numberDNMG 15 04 12-MR 4415
Manufacturer grade4415
Relief angle0
Side clearanceNegative
Tolerance codeM
