Sandvik Coromant

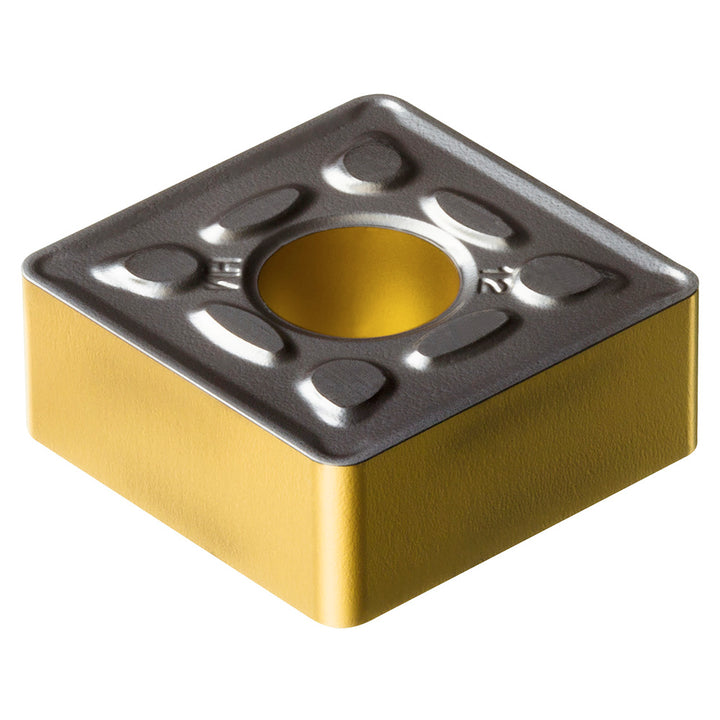

SNMG 15 06 16-HM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021222
MFR# 8021222ISO/ANSI# SNMG 15 06 16-HM 4415Cat# SNMG 15 06 16-HM 4415Series SNMG-HM
$30.74List $39.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021222 is a SNMG 15 06 16-HM 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1506
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 15 06 16-HM 4415
Manufacturers catalog numberSNMG 15 06 16-HM 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
