Sandvik Coromant

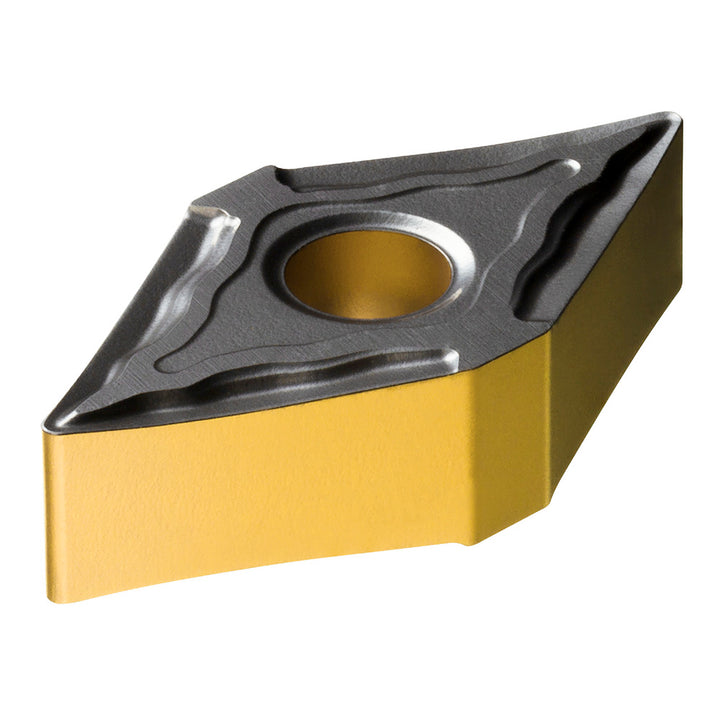

DNMG 15 04 04-MF 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021256
MFR# 8021256ISO/ANSI# DNMG 15 04 04-MF 4415Cat# DNMG 15 04 04-MF 4415Series DNMG-MF (ISO P)
$26.15List $33.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021256 is a DNMG 15 04 04-MF 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 04-MF 4415
Manufacturers catalog numberDNMG 15 04 04-MF 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
