Sandvik Coromant
CNMM 19 06 16-WR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021302
MFR# 8021302ISO/ANSI# CNMM 19 06 16-WR 4415Cat# CNMM 19 06 16-WR 4415Series CNMM-WR
$52.86List $67.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
Grade4415
MaterialCarbide
CoatingTiCN
Description

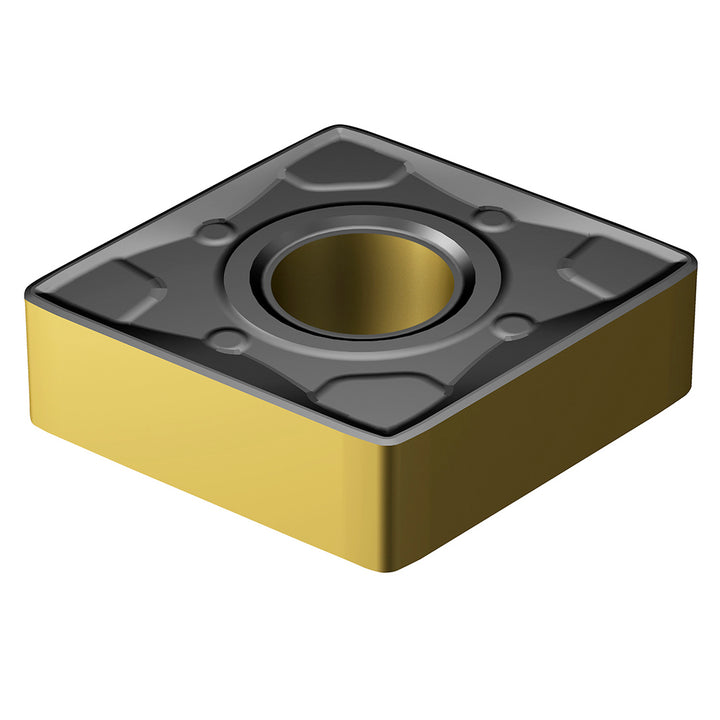

The Sandvik Coromant 8021302 is a CNMM 19 06 16-WR 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1906
Insert styleCNMM
Insert thickness in1/4
Iso codeCNMM 19 06 16-WR 4415
Manufacturers catalog numberCNMM 19 06 16-WR 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
