Sandvik Coromant

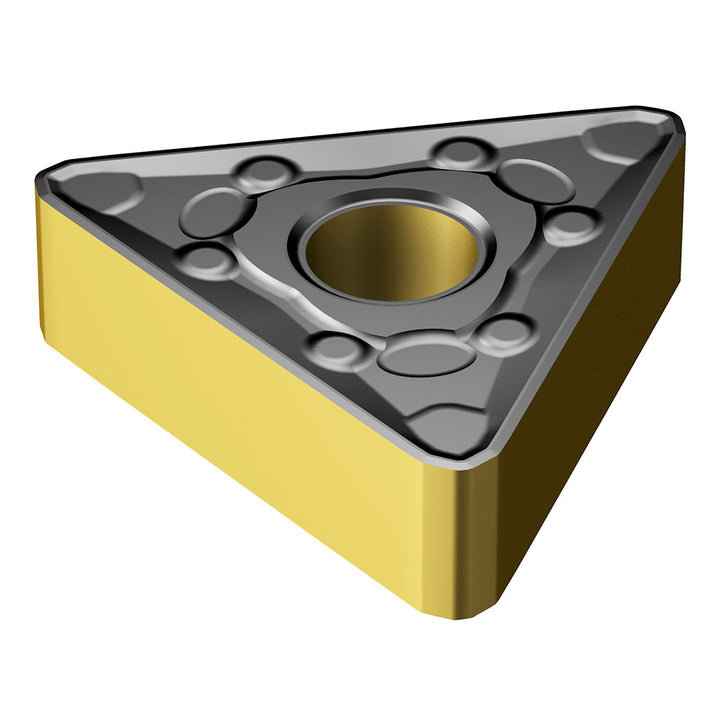

TNMX 22 04 16-WR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021304
MFR# 8021304ISO/ANSI# TNMX 22 04 16-WR 4415Cat# TNMX 22 04 16-WR 4415Series TNMX-WR
$27.15List $34.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021304 is a TNMX 22 04 16-WR 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code2204
Insert styleTNMX
Insert thickness in3/16
Iso codeTNMX 22 04 16-WR 4415
Manufacturers catalog numberTNMX 22 04 16-WR 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
