Sandvik Coromant

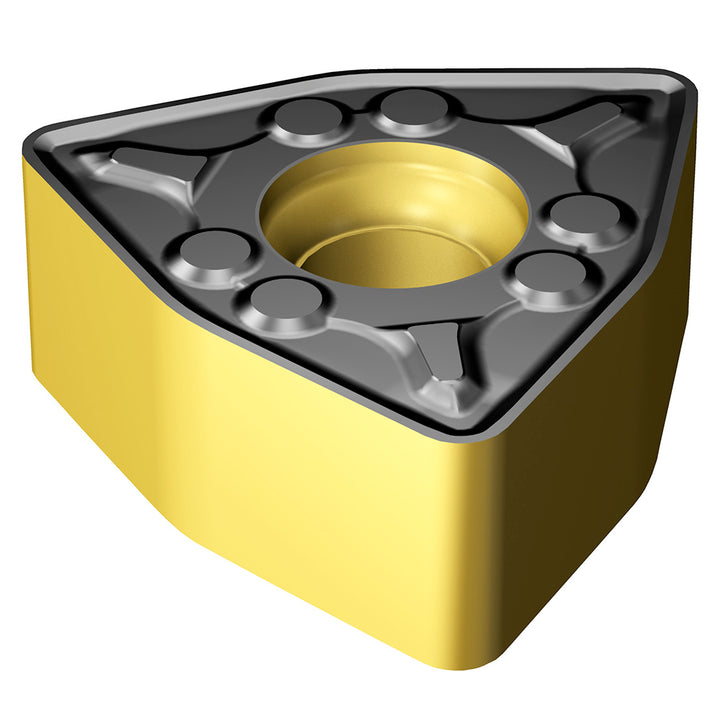

WNMU 08 04 12-WM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021315
MFR# 8021315ISO/ANSI# WNMU 08 04 12-WM 4415Cat# WNMU 08 04 12-WM 4415Series WNMU-WM
$23.75List $30.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021315 is a WNMU 08 04 12-WM 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerWM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code433
Insert styleWNMU
Insert thickness in3/16
Iso codeWNMU 08 04 12-WM 4415
Manufacturers catalog numberWNMU 08 04 12-WM 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
