Sandvik Coromant

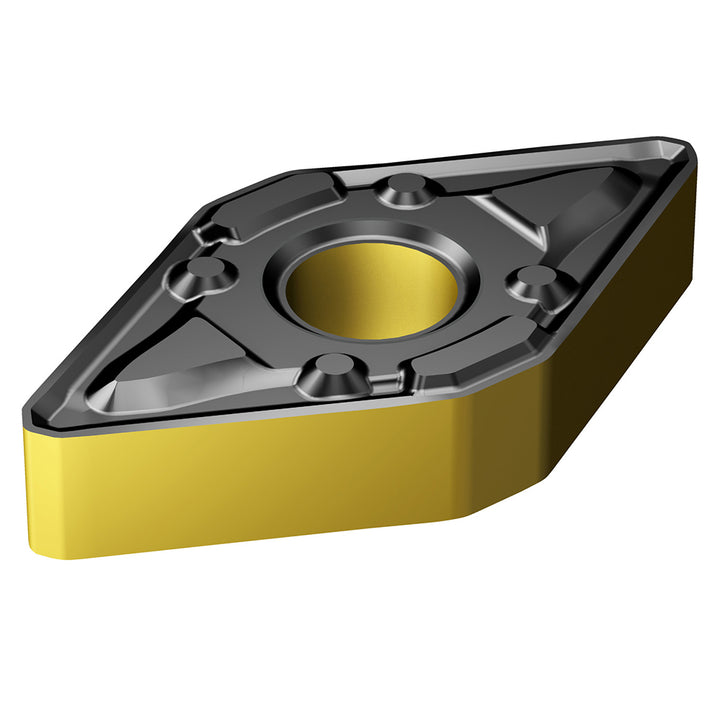

DNMX 15 04 12-WM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021319
MFR# 8021319ISO/ANSI# DNMX 15 04 12-WM 4415Cat# DNMX 15 04 12-WM 4415Series DNMX-WM
$30.22List $38.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021319 is a DNMX 15 04 12-WM 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerWM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleDNMX
Iso codeDNMX 15 04 12-WM 4415
Manufacturers catalog numberDNMX 15 04 12-WM 4415
Manufacturer grade4415
Primary workpiece materialSteel
Tolerance codeM
