Sandvik Coromant

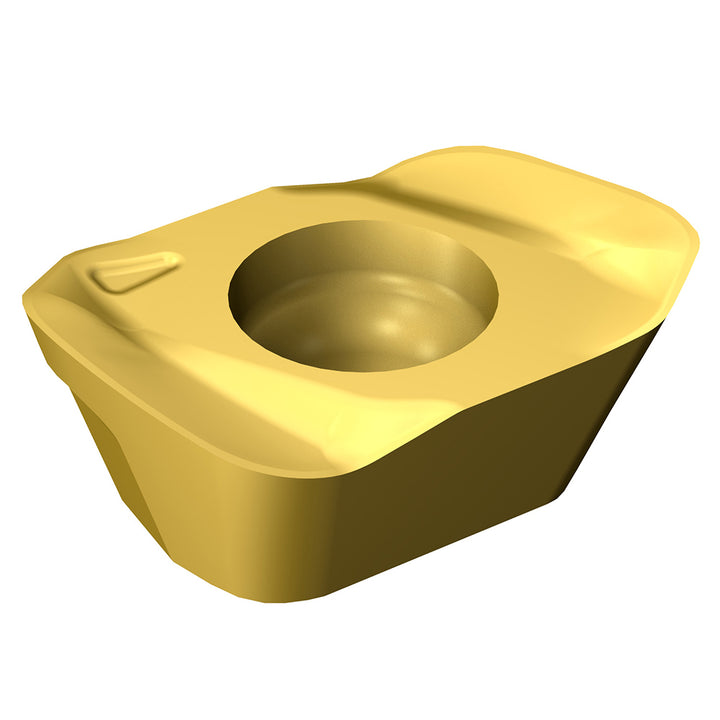

MH20-080425E-L30 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 8029483
MFR# 8029483ISO/ANSI# MH20-080425E-L30 2040Cat# MH20-080425E-L30 2040Series MH20
$19.30List $24.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
Grade2040
MaterialSolid Carbide
CoatingTiCrN
Description
The Sandvik Coromant 8029483 is a MH20-080425E-L30 2040 solid carbide indexable insert, grade 2040, TiCrN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeMH20-080425E-L30 2040
Chip breakerL30
Coating finishTiCrN
Coating processCVD
Corner radius0.0827
Cutter series compatibilityMH20
Cutting edge styleCorner Rounded
Hole diameter0.1339
Included angle degree105
Inscribed circle0.3346
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size08
Insert size code080425
Insert styleMH20
Iso codeMH20-080425E-L30 2040
Length0.2323
Length range0.0000 to 0.3200
Manufacturers catalog numberMH20-080425E-L30 2040
Manufacturer grade2040
Material applicationStainless Steel; Superalloys & Titanium
Material gradeP45; M40; S30
Maximum depth of cut0.0472
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle13
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1587
Thickness range0.1500 to 0.1750
Width0.3346
