Sandvik Coromant

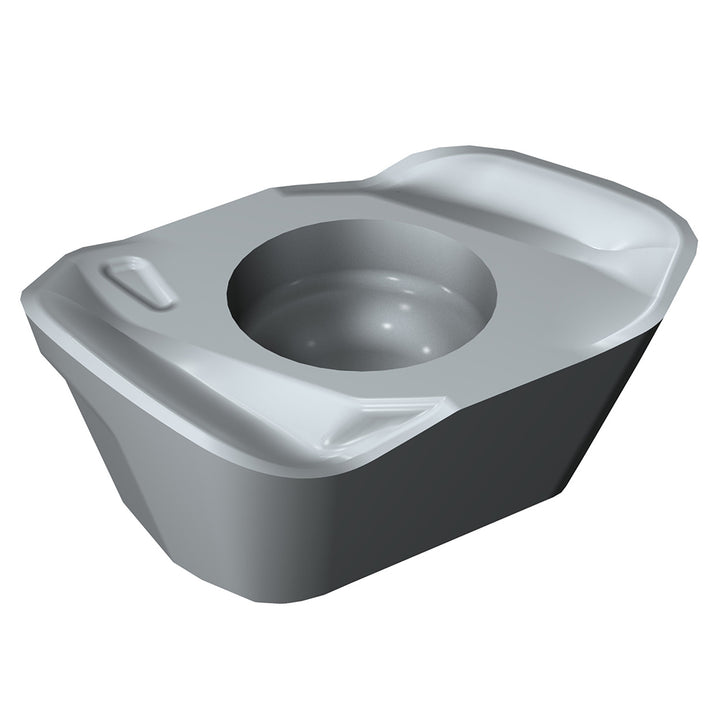

MH20-080425M-M50 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 8029501
MFR# 8029501ISO/ANSI# MH20-080425M-M50 1130Cat# MH20-080425M-M50 1130Series MH20
$15.24List $19.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN
Description
The Sandvik Coromant 8029501 is a MH20-080425M-M50 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, superalloys & titanium, hard material.
Specifications
Ansi codeMH20-080425M-M50 1130
Chip breakerM50
Coating finishAlTiCrN
Coating processPVD
Corner radius0.0827
Cutter series compatibilityMH20
Cutting edge styleCorner Rounded
Hole diameter0.1339
Included angle degree105
Inscribed circle0.3346
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size08
Insert size code080425
Insert styleMH20
Iso codeMH20-080425M-M50 1130
Length0.2323
Length range0.0000 to 0.3200
Manufacturers catalog numberMH20-080425M-M50 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.0472
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material
RakePositive
Rake angle13
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1587
Thickness range0.1500 to 0.1750
Width0.3346
