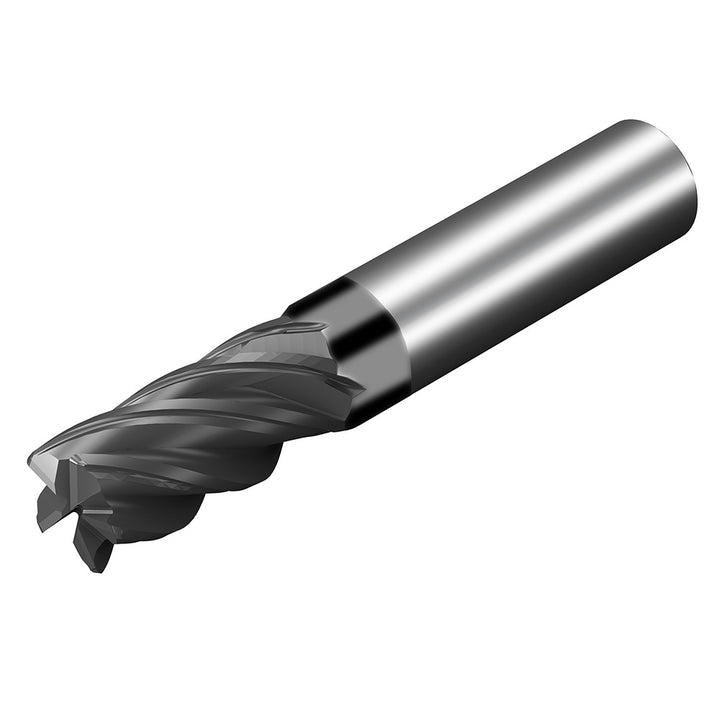

1/4" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Sandvik Coromant 8036762

Sandvik Coromant

1/4" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Sandvik Coromant 8036762

MFR# 8036762Series CoroMill Dura

$48.00List $59.50 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Sandvik Coromant 8036762 is a 1/4 5-flute Solid Carbide (X1BH) corner radius end mill with a AlTiN finish for longer tool life. 5/8 length of cut, 2-1/2 overall length. Series CoroMill Dura.

Specifications

CentercuttingYes
Coating finishAlTiN
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Flute directionRight Hand
Flute typeSpiral
Length of cut in5/8
Material gradeX1BH
Mill diameter in1/4
Number of flutes5
Overall length in2-1/2
Shank diameter in1/4
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
