Sandvik Coromant

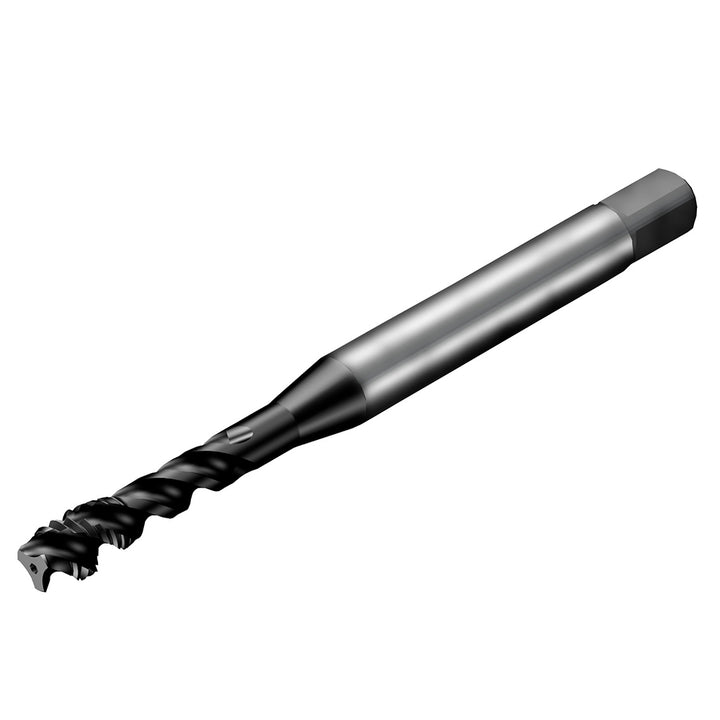

M10x1.5 DIN 371 High-Speed Steel-E-PM Tap, TiAlN - Sandvik Coromant 8055827
MFR# 8055827Series T300
$123.78List $158.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiAlN
Description
The Sandvik Coromant 8055827 is a DIN 371 High-Speed Steel-E-PM tap with a TiAlN finish. 3 flutes.
Specifications
ChamferSemi-Bottoming
Class of fit6HX
Coating finishTiAlN
Coolant throughYes
Flute directionRight Hand
Flute styleSpiral
Helix angle48
Helix angle range15 to 50
MaterialHigh-Speed Steel-E-PM
Material applicationSteel
Material gradeP1PM
Number of flutes3
Overall length (mm)100.00
Shank diameter (mm)10.00
Tapping depth (mm)39.00
Thread directionRight Hand
Thread length (mm)15.00
Thread size (mm)M10x1.5
Thread standardDIN 371
