Sandvik Coromant
1/2-13 DIN; ANSI Powdered Metal Tap, TIALN - Sandvik Coromant 8056277
MFR# 8056277Series T300
$159.06List $204.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
CoatingTIALN
Description

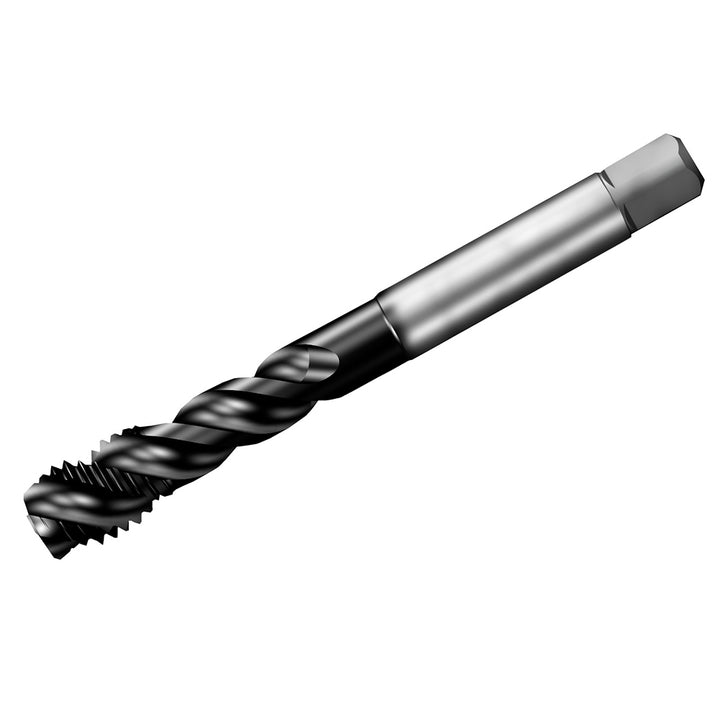

The Sandvik Coromant 8056277 is a 1/2-13 DIN; ANSI Powdered Metal tap with a TIALN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2BX
Coating finishTIALN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle48
Helix angle range15 to 50
MaterialPowdered Metal
Material applicationSteel
Material gradeP1PM
Number of flutes3
Overall length (mm)110.00
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter (mm)9.00
Tapping depth (mm)55.00
Thread directionRight Hand
Thread length (mm)18.00
Thread size in1/2-13
Thread standardDIN; ANSI
