Sandvik Coromant

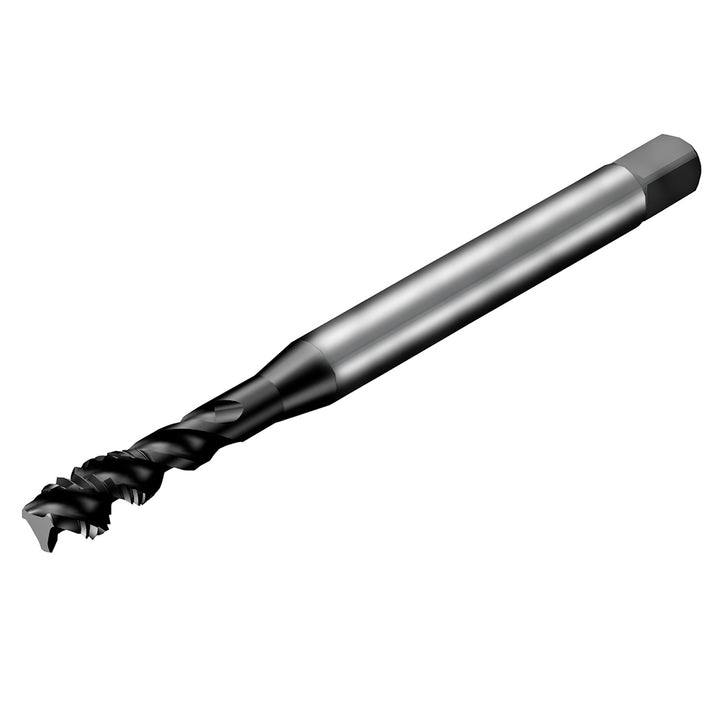

M3x0.5 JIS B 4430 High-Speed Steel-E-PM Tap, TiAlN - Sandvik Coromant 8056458
MFR# 8056458Series T300
$54.99List $70.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiAlN
Description
The Sandvik Coromant 8056458 is a JIS B 4430 High-Speed Steel-E-PM tap with a TiAlN finish. 3 flutes.
Specifications
ChamferSemi-Bottoming
Class of fit6HX
Coating finishTiAlN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle48
Helix angle range15 to 50
MaterialHigh-Speed Steel-E-PM
Material applicationSteel
Material gradeP1PM
Number of flutes3
Overall length (mm)46.00
Shank diameter (mm)4.00
Tapping depth (mm)18.00
Thread directionRight Hand
Thread length (mm)6.00
Thread size (mm)M3x0.5
Thread standardJIS B 4430
