Sandvik Coromant

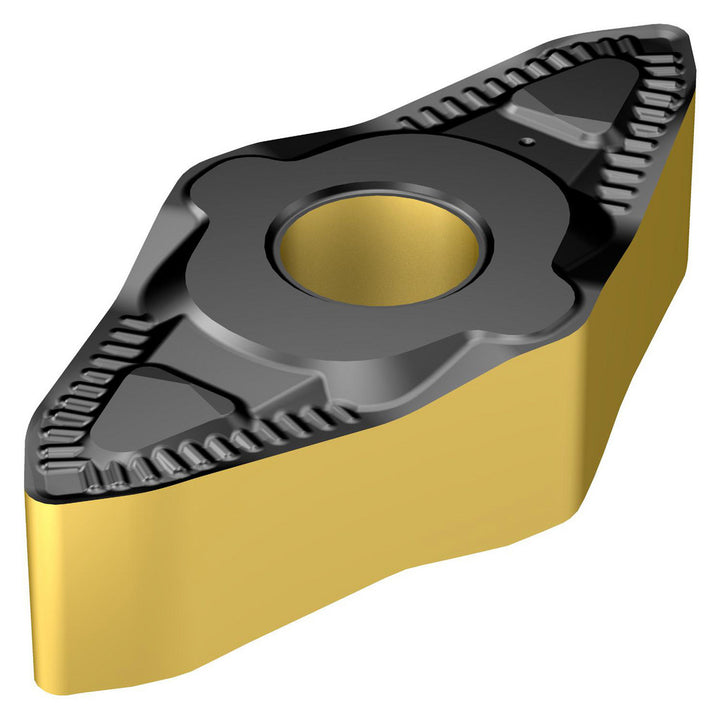

CP-B1208D-M5 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8180201
MFR# 8180201ISO/ANSI# CP-B1208D-M5 4425Cat# CP-B1208D-M5 4425Series CoroTurn Prime
$35.43List $38.70
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeIrregular
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8180201 is a CP-B1208D-M5 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerM5
Coating finishTiCN
Coating processCVD
Corner radius0.0315
Hole diameter0.2030
Inscribed circle0.4724
Insert handNeutral
Insert holding methodScrew; Clamp
Insert materialCarbide
Insert shapeIrregular
Insert size code1208
Insert styleCP-B
Insert thickness0.2362
Iso codeCP-B1208D-M5 4425
Manufacturers catalog numberCP-B1208D-M5 4425
Manufacturer grade4425
Number of cutting edges8
Primary workpiece materialSteel
RakePositive
Rake angle7
Relief angle0
Secondary workpiece materialCast Iron
Stocking categoryDirect Ship
Wiper edgeNo
