Sandvik Coromant

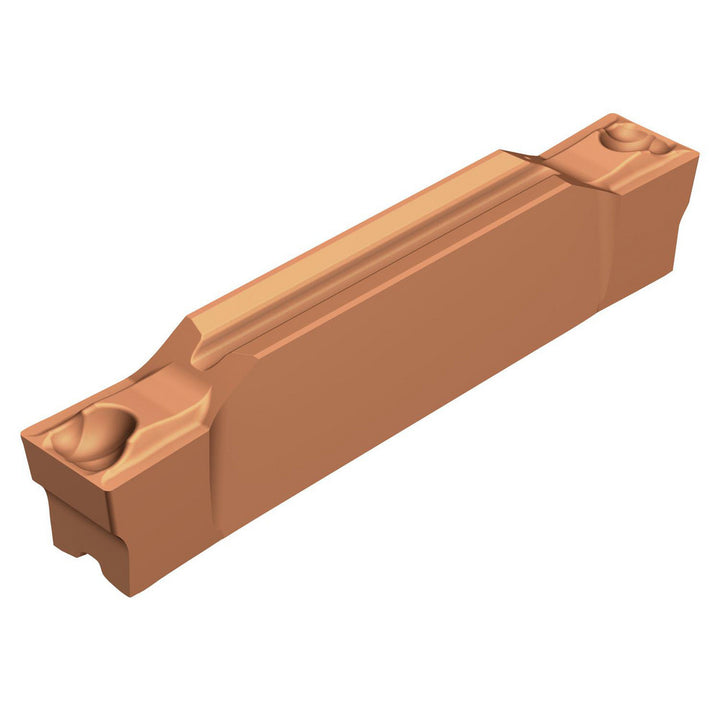

C2I-G2N-0300-0002-GF1225 Carbide Insert, Grade 1225, TiAlN/TiAlSiN/TiSiN - Sandvik Coromant 8194283
MFR# 8194283ISO/ANSI# C2I-G2N-0300-0002-GF1225Cat# C2I-G2N-0300-0002-GF1225Series CoroCut® 2
$54.74List $70.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1225
MaterialCarbide
CoatingTiAlN/TiAlSiN/TiSiN
Description
The Sandvik Coromant 8194283 is a C2I-G2N-0300-0002-GF1225 carbide indexable insert, grade 1225, TiAlN/TiAlSiN/TiSiN coated. Suited for steel.
Specifications
Ansi codeC2I-G2N-0300-0002-GF1225
Chip breakerGF
Coating finishTiAlN/TiAlSiN/TiSiN
Coating processPVD
Corner radius0.0079
Cutting height0.7579
Cutting width0.7579
Face groovingYes
For use withParting & Grooving Tool Holders
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert sizeG2
Insert size codeG
Insert styleC2I
Iso codeC2I-G2N-0300-0002-GF1225
Lead angle0.000
Manufacturers catalog numberC2I-G2N-0300-0002-GF1225
Manufacturer grade1225
Maximum depth of cut0.0677
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel
RakeNeutral
Secondary workpiece materialStainless Steel
