Sandvik Coromant

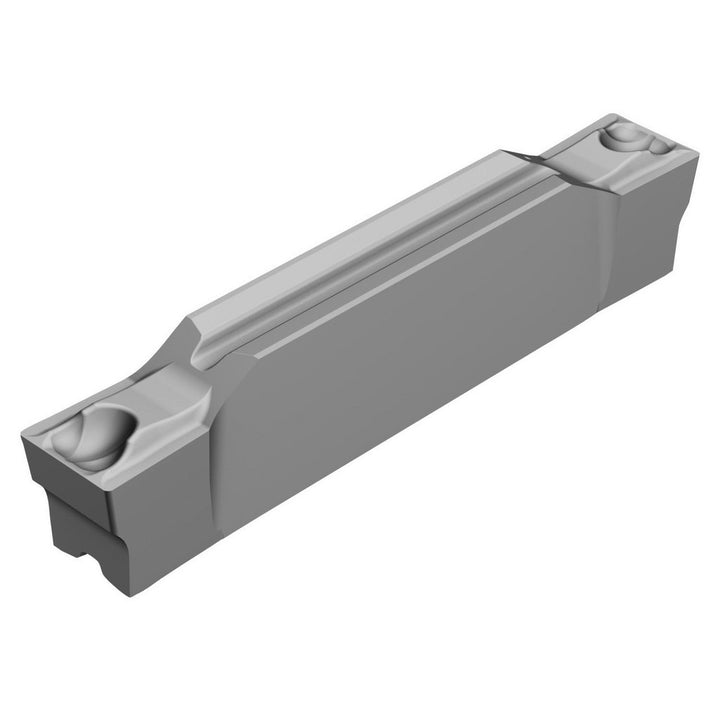

C2I-H2N-0400-0004-GF5015 Cermet Insert, Grade 5015 - Sandvik Coromant 8194328
MFR# 8194328ISO/ANSI# C2I-H2N-0400-0004-GF5015Cat# C2I-H2N-0400-0004-GF5015Series CoroCut® 2
$51.12List $65.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade5015
MaterialCermet
Description
The Sandvik Coromant 8194328 is a C2I-H2N-0400-0004-GF5015 cermet indexable insert, grade 5015. Suited for steel.
Specifications
Ansi codeC2I-H2N-0400-0004-GF5015
Chip breakerGF
Coating processUncoated
Corner radius0.0157
Cutting height0.9543
Cutting width0.9543
Face groovingYes
For use withParting & Grooving Tool Holders
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCermet
Insert sizeH2
Insert size codeH
Insert styleC2I
Iso codeC2I-H2N-0400-0004-GF5015
Lead angle0.000
Manufacturers catalog numberC2I-H2N-0400-0004-GF5015
Manufacturer grade5015
Maximum depth of cut0.0906
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel
RakeNeutral
Secondary workpiece materialStainless Steel
