Sandvik Coromant

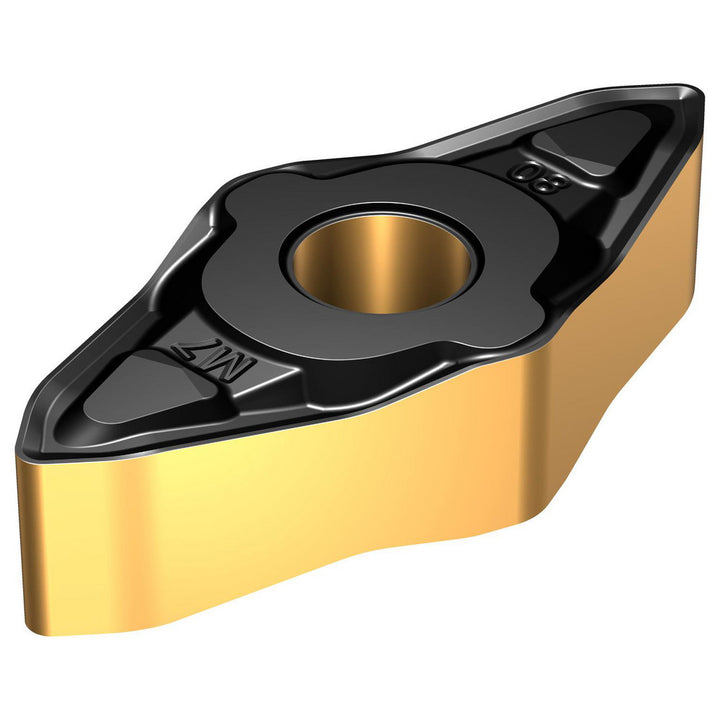

CP-B1208D-M7 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8232391
MFR# 8232391ISO/ANSI# CP-B1208Cat# CP-B1208D-M7 4415Series CoroTurn Prime
$35.43List $38.70
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeNon-ISO Specialty Shapes
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8232391 is a CP-B1208D-M7 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCP-B
Chip breakerM7
Coating finishTiCN
Coating processCVD
Corner radius0.0315
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Inscribed circle0.4724
Insert handNeutral
Insert holding methodScrew; Clamp
Insert materialCarbide
Insert shapeNon-ISO Specialty Shapes
Insert size code1208
Insert styleCP-B
Insert thickness0.2362
Iso codeCP-B1208D-M7 4415
Iso insert codeCP-B1208
Iso size code1208
Manufacturers catalog numberCP-B1208D-M7 4415
Manufacturer grade4415
Number of cutting edges8
Primary workpiece materialSteel
RakePositive
Rake angle18
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
Stocking categoryDirect Ship
Wiper edgeNo
