5/16-18 UNC High-Speed Steel-PM Tap, TiN - Sandvik Coromant 8248383
MFR# 8248383Series T400-XM150AE
$124.63List $159.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/16-18
CoatingTiN
Description

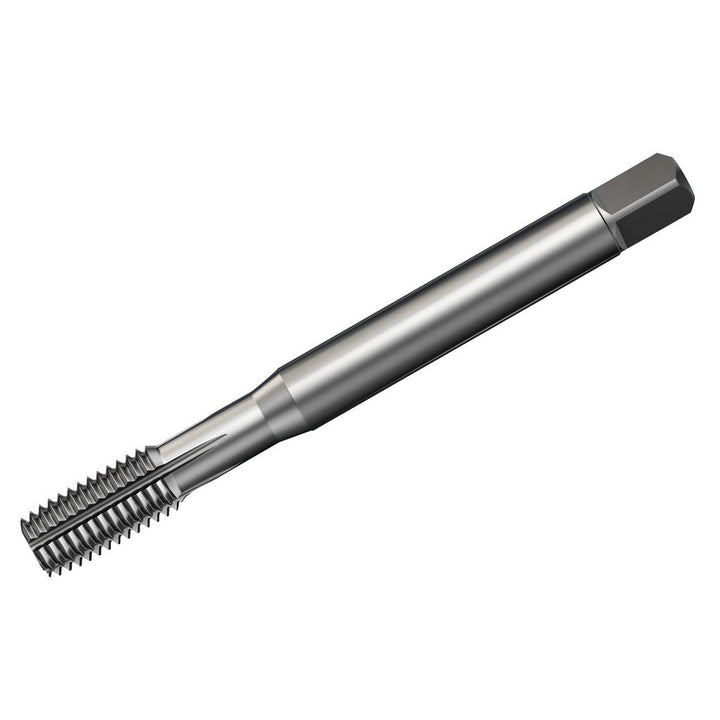

The Sandvik Coromant 8248383 is a 5/16-18 UNC High-Speed Steel-PM tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2B
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-PM
Material application codeP; M; N; S
Material gradeC125
Oil grooves5
Overall length3.5433
Shank diameter0.3180
Square size0.2380
Tapping depth1.3386
Thread directionRight Hand
Thread length0.7480
Thread size in5/16-18
Thread standardUNC
Trade nameCoroTap 400
