Sandvik Coromant

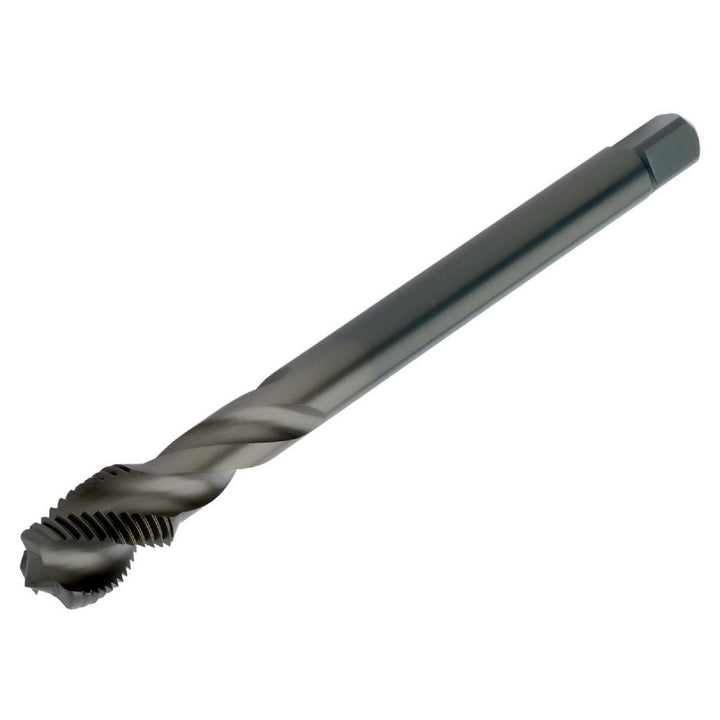

M12 Metric Fine Cobalt Tap, FeN - Sandvik Coromant 8248772
MFR# 8248772Series CoroTap 300
$49.26List $63.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingFeN
Description
The Sandvik Coromant 8248772 is a Metric Fine Cobalt tap with a FeN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishFeN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle40
Helix angle range15 to 50
MaterialCobalt
Material applicationStainless Steel
Number of flutes3
Overall length3.5433
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.2362
Tapping depth1.7717
Threads per inch25
Thread directionRight Hand
Thread length0.5118
Thread limitD5
Thread pitch (mm)1.00
Thread size (mm)M12
Thread standardMetric Fine
