Sandvik Coromant

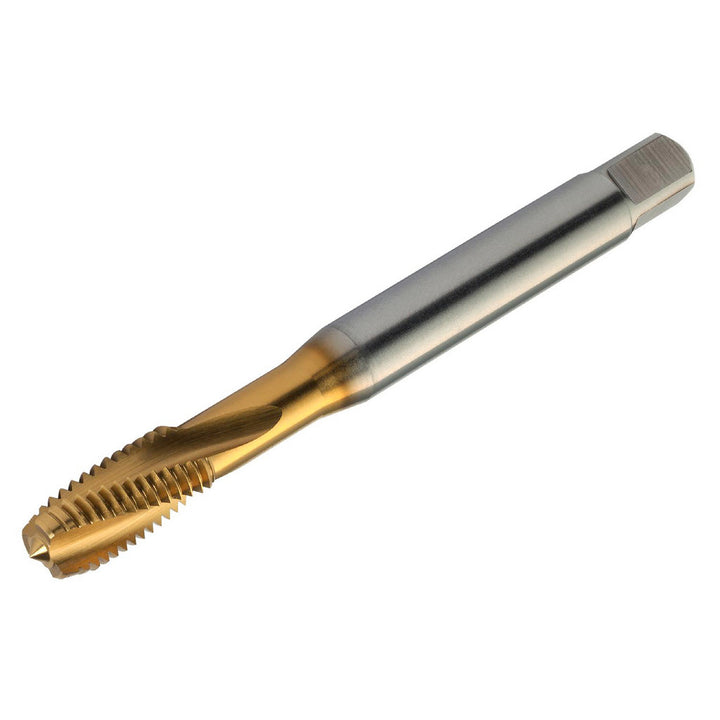

M8 Metric Cobalt Tap, Straw - Sandvik Coromant 8248835
MFR# 8248835Series CoroTap 300
$32.30List $41.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingStraw
Description
The Sandvik Coromant 8248835 is a Metric Cobalt tap with a Straw finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishStraw
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle15
Helix angle range15 to 50
MaterialCobalt
Material applicationNon-Ferrous Metal; Steel
Number of flutes3
Overall length3.5433
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.3150
Tapping depth1.3780
Threads per inch20
Thread directionRight Hand
Thread length0.4724
Thread limitD6
Thread pitch (mm)1.25
Thread size (mm)M8
Thread standardMetric
