Sandvik Coromant

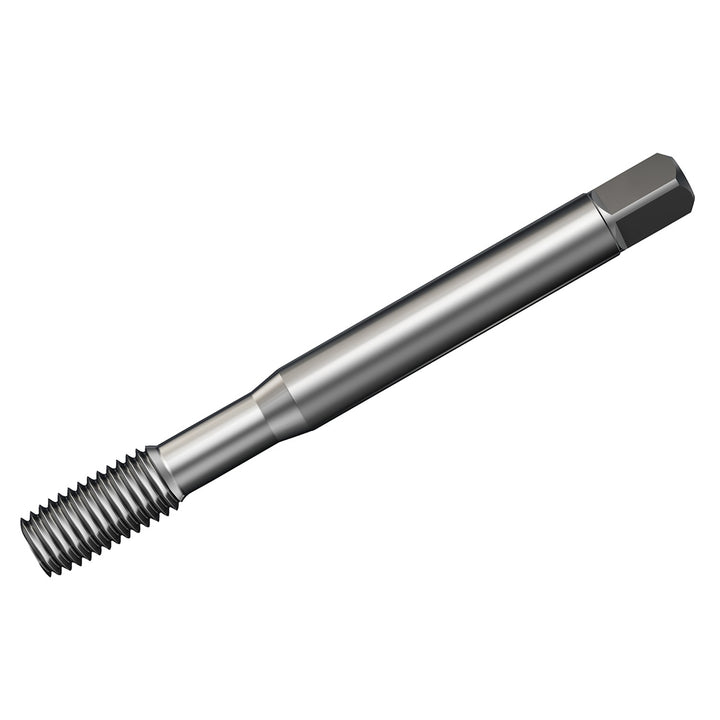

M6x1 Metric Solid Carbide Tap, TiCN - Sandvik Coromant 8252224
MFR# 8252224Series T400-XM100DA
$291.36List $373.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description
The Sandvik Coromant 8252224 is a Metric Solid Carbide tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiCN
Coolant throughNo
MaterialSolid Carbide
Material application codeP; M; N; S
Material gradeA115
Oil grooves5
Overall length3.1496
Shank diameter0.2362
Square size0.1929
Tapping depth1.1811
Thread directionRight Hand
Thread length0.7480
Thread size (mm)M6x1
Thread standardMetric
Trade nameCoroTap 400
