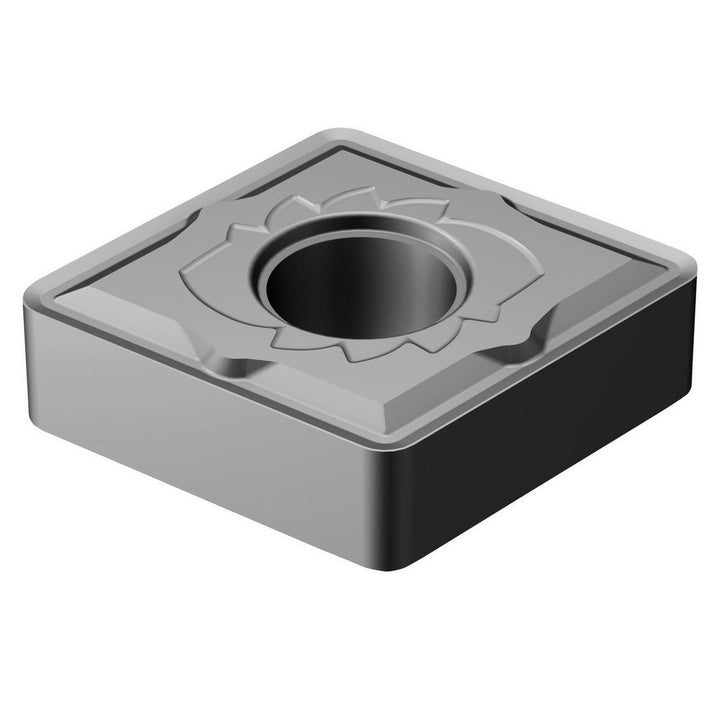

CNMG 12 04 08-SM 1205 Carbide Insert, Grade 1205, PVD - Sandvik Coromant 8432049
MFR# 8432049ISO/ANSI# CNMG 12 04 08-SM 1205Cat# CNMG 12 04 08-SM 1205Series CNMG
$20.13List $25.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
Grade1205
MaterialCarbide
CoatingPVD
Description
The Sandvik Coromant 8432049 is a CNMG 12 04 08-SM 1205 carbide indexable insert, grade 1205, PVD coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeN
Coating finishPVD
Corner radius0.0313
Hole diameter0.2030
Included angle0.00
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew; Clamp
Insert materialCarbide
Insert shapeDiamond 80
Insert size code1204
Insert styleCNMG
Insert thickness0.1875
Iso codeCNMG 12 04 08-SM 1205
Manufacturers catalog numberCNMG 12 04 08-SM 1205
Manufacturer grade1205
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0.000
Secondary workpiece materialSuper-alloys & Titanium
Tolerance codeM
Wiper edgeNo
