Sandvik Coromant
DCMT 11 T3 04-MM 1205 Carbide Insert, Grade 1205, PVD - Sandvik Coromant 8432121
MFR# 8432121ISO/ANSI# DCMTCat# DCMT 11 T3 04-MM 1205
$18.44List $23.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond 55
Grade1205
MaterialCarbide
CoatingPVD
Description

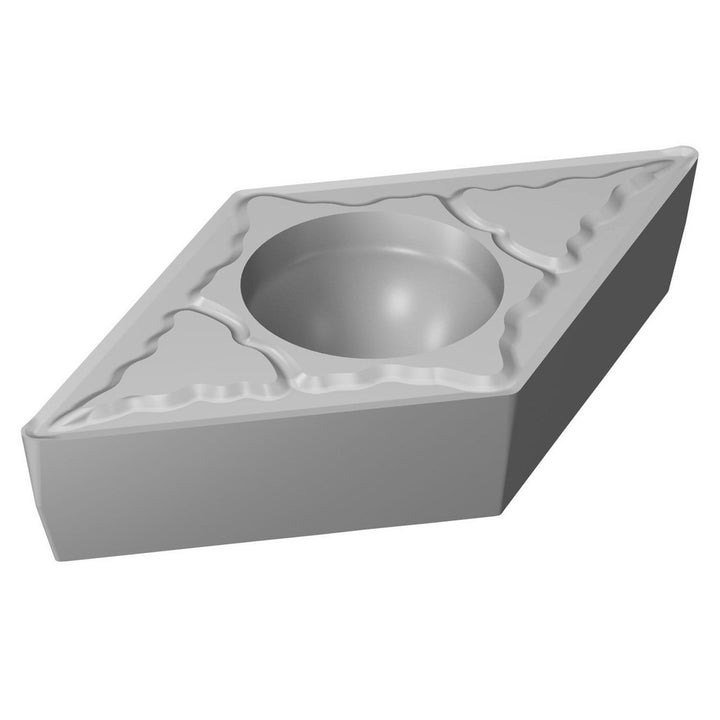

The Sandvik Coromant 8432121 is a DCMT 11 T3 04-MM 1205 carbide indexable insert, grade 1205, PVD coated. Suited for steel.
Specifications
Ansi insert codeDCMT
Chip breakerMM
Clearance codeC
Coating finishPVD
Coating processPVD
Corner radius0.0156
Hole diameter0.1732
Included angle55.00
Inscribed circle0.3750
Insert handNeutral
Insert holding methodScrew; Clamp
Insert materialCarbide
Insert shapeDiamond 55
Insert size code11T3
Insert styleDCMT
Insert thickness0.1563
Iso codeDCMT 11 T3 04-MM 1205
Iso insert codeDCMT
Manufacturers catalog numberDCMT 11 T3 04-MM 1205
Manufacturer grade1205
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7.000
Secondary workpiece materialStainless Steel
Side clearancePositive
Tolerance codeM
Wiper edgeNo
