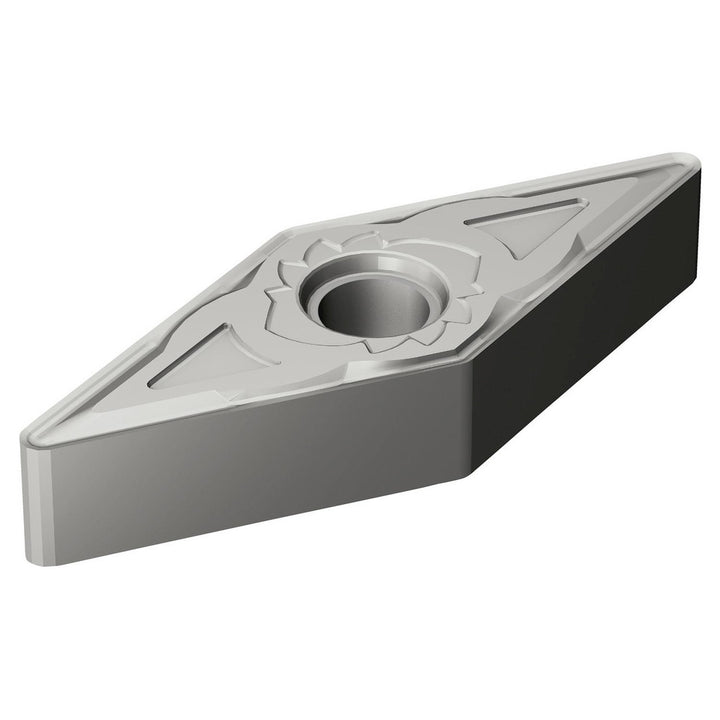

VNMG 16 04 08-SM 1205 Carbide Insert, Grade 1205, PVD - Sandvik Coromant 8432389
MFR# 8432389ISO/ANSI# VNMG 16 04 08-SM 1205Cat# VNMG 16 04 08-SM 1205Series VNMG
$36.45List $46.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
Grade1205
MaterialCarbide
CoatingPVD
Description
The Sandvik Coromant 8432389 is a VNMG 16 04 08-SM 1205 carbide indexable insert, grade 1205, PVD coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeN
Coating finishPVD
Corner radius0.0313
Hole diameter0.1500
Included angle0.00
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew; Clamp
Insert materialCarbide
Insert shapeDiamond 35
Insert size code1604
Insert styleVNMG
Insert thickness0.1875
Iso codeVNMG 16 04 08-SM 1205
Manufacturers catalog numberVNMG 16 04 08-SM 1205
Manufacturer grade1205
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0.000
Secondary workpiece materialSuper-alloys & Titanium
Tolerance codeM
Wiper edgeNo
