Scientific Cutting Tools

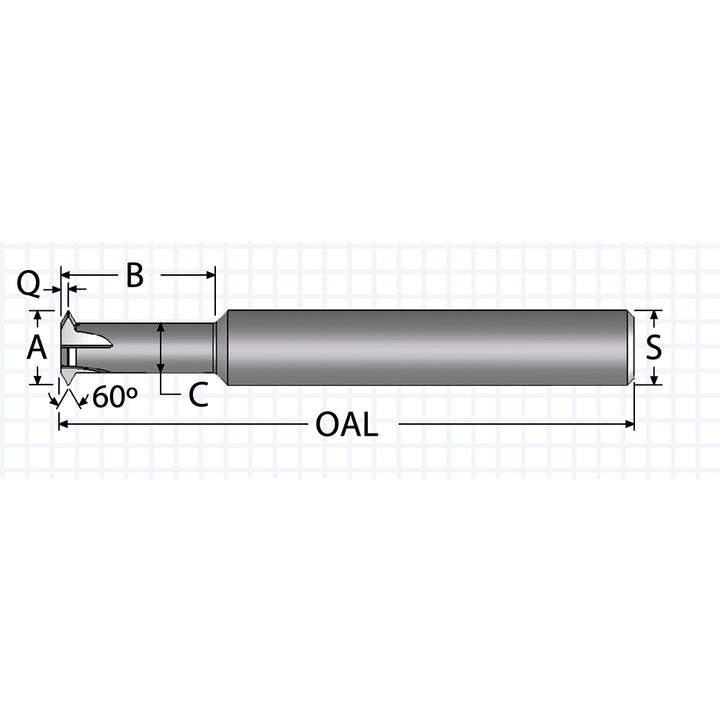

#4-40 - #4-64" Single Profile Thread Mills - Scientific Cutting Tools SPTM080MLA
MFR# SPTM080MLA
$52.96List $65.55
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingAlTiN+
Description
The Scientific Cutting Tools SPTM080MLA single profile thread mills.
Specifications
Coating finishAlTiN+
Cutting diameter0.0800
Length of cut in1/4
MaterialSolid Carbide
Material gradeSubmicron
Maximum threads per inch64
Minimum threads per inch40
Neck diameter0.0450
Neck length0.2500
Number of flutes3
Overall length in2
Shank diameter in3/16
Thread size#4-40 - #4-64
Thread typeInternal; External
