Seco

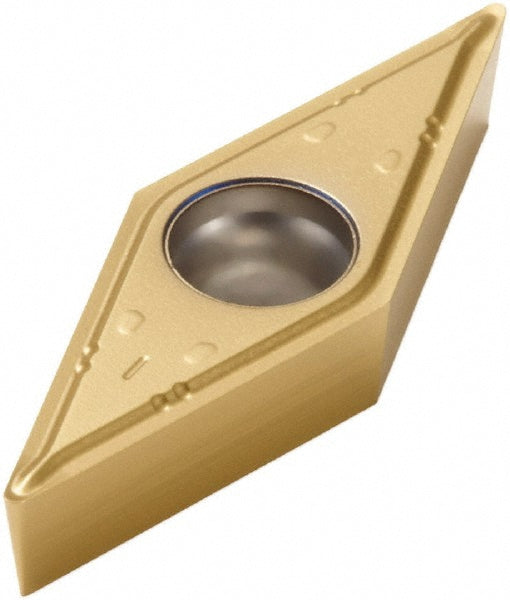

VBMT110208-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00000166
MFR# 00000166ISO/ANSI# VBMT21.52-F1Series VBMT-F1
$21.97List $28.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00000166 is a VBMT110208-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle35degree
Industry standard numberVBMT21.52-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8716
Insert materialCarbide
Insert shapeDiamond 35
Insert size code21.52
Insert styleVBMT
Insert thickness in3/32
Iso codeVBMT110208-F1
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number00000166
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.3543
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle5
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
