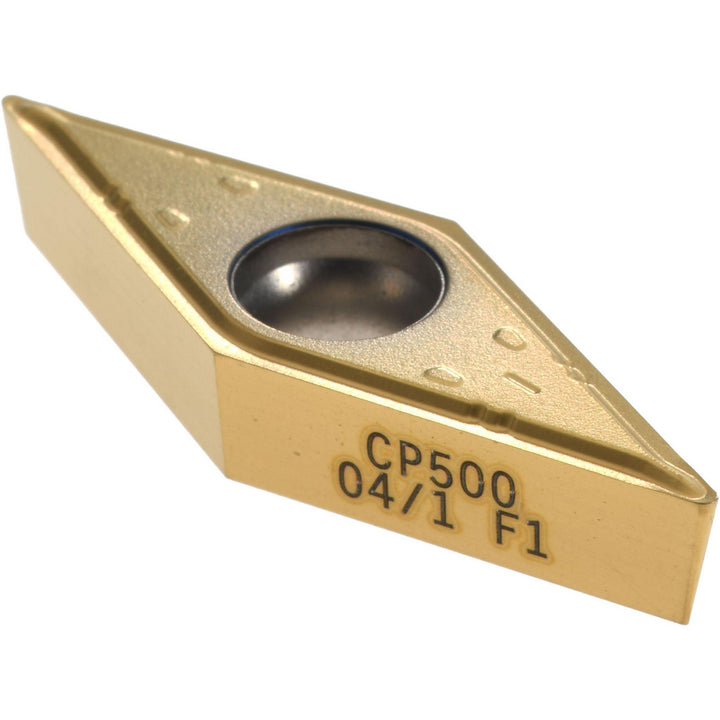

VBMT160404-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00000169

Seco

VBMT160404-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00000169

MFR# 00000169ISO/ANSI# VBMT160404Series VBMT-F1

$24.08List $30.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 00000169 is a VBMT160404-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeVBMT331
Ansi size code331
Chip breakerF1
Chip breaker operationFinishing
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1772
Included angle35
Industry standard numberVBMT331-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3078
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404-F1
Iso insert codeVBMT160404
Iso size code160404
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number00000169
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.6142
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle5
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
