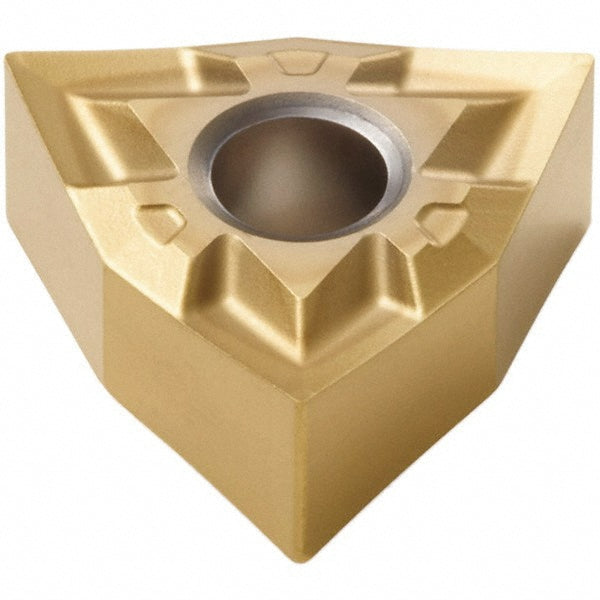

WNGG060402-MF1 Carbide Insert, Grade CP500, TiAlN - Seco 00000177

Seco

WNGG060402-MF1 Carbide Insert, Grade CP500, TiAlN - Seco 00000177

MFR# 00000177ISO/ANSI# WNGP330.5-MF1Series WNGP-MF1

$24.24List $31.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTrigon
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 00000177 is a WNGG060402-MF1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Chip breakerMF1
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNGP330.5-MF1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5196
Insert materialCarbide
Insert shapeTrigon
Insert size code330.5
Insert styleWNGP
Insert thickness in3/16
Iso codeWNGG060402-MF1
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number00000177
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.2520
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
