Seco

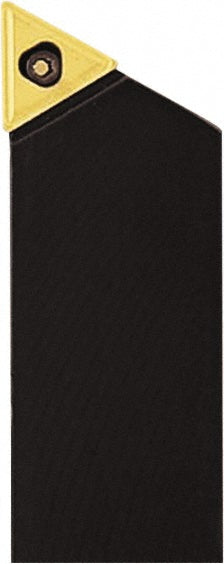

Indexable Turning & Profiling - Seco 00015720
MFR# 00015720Series Multi-Directional Turning (MDT)
$112.83List $129.00
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00015720 indexable turning & profiling. Suited for universal. Series Multi-Directional Turning (MDT).
Specifications
Back of bar to cutting edge0.5100
Compatible insert size codeTPMM252
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Head length4.5000
Insert compatibilityTPMM 2.52..
Insert holding methodPin
Insert inscribed circle in5/16
Multi use toolNo
Overall length4.5000
Primary workpiece materialUniversal
RakePositive
Rake angle5
Shank height0.5000
Shank width0.5000
Toolholder stylePTAP
