Seco

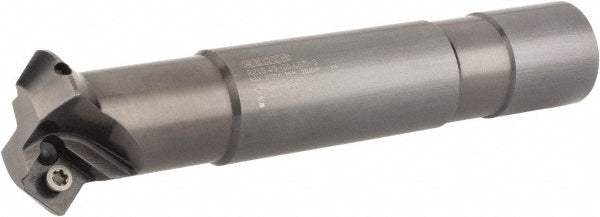

Indexable End Mills - Seco 00072168
MFR# 00072168Series Milling Normal ISO
$475.76List $505.44
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Seco 00072168 indexable end mills. Series Milling Normal ISO.
Specifications
Compatible insert size codeSPMX0903
Complete insert compatibilitySPMX 090304-75; SPMX 0903AP-75
Functional length (mm)60.00
Included angle degree45
Insert holding methodScrew
Insert styleSPMX 0903..
Maximum body diameter0.7500
Maximum cutting diameter1.0390
Maximum depth of cut0.2000
Maximum rpm27200
Minimum cutting diameter in5/8
Number of cutter inserts2
Number of flutes2
Overall length4.3300
Shank diameter in3/4
Shank length2.9500
Shank typeWeldon Flat
Toolholder styleR215; R215.49
Tool applicationChamfering
