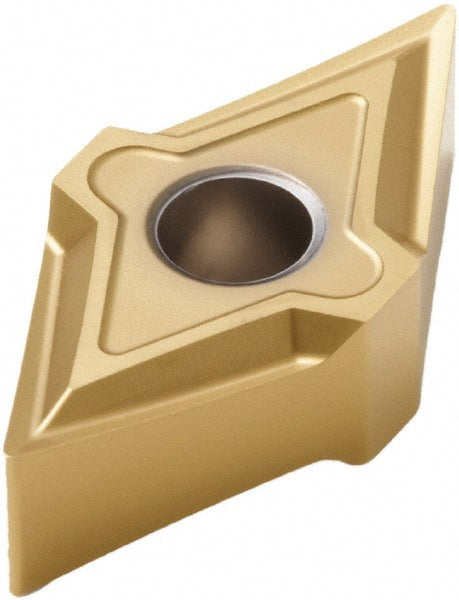

DNMG150404-MF1 Carbide Insert, Grade CP200, TiAlN - Seco 00072240

Seco

DNMG150404-MF1 Carbide Insert, Grade CP200, TiAlN - Seco 00072240

MFR# 00072240ISO/ANSI# DNMP431-MF1Series DNMP-MF1

$23.65List $30.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeCP200
MaterialCarbide
CoatingTiAlN

Description

The Seco 00072240 is a DNMG150404-MF1 carbide indexable insert, grade CP200, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerMF1
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNMP431-MF1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeDiamond 55
Insert size code431
Insert styleDNMP
Insert thickness in3/16
Iso codeDNMG150404-MF1
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number00072240
Manufacturer gradeCP200
Material gradeM01; M10; M20; S10; S20
Maximum depth of cut0.5945
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
