Seco

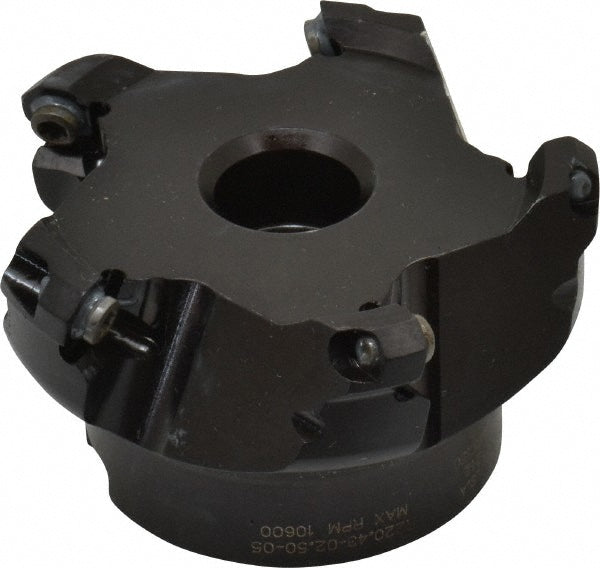

Indexable Milling Cutters - Seco 00086839
MFR# 00086839Series R220.43
$942.39List $1,001.16
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Seco 00086839 indexable milling cutters. Series R220.43.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeOF 05T305
Coolant throughNo
Cutter styleR220.43
Cutting directionRight Hand
Hub diameter1.8500
Insert holding methodScrew
Keyway width0.3200
Maximum body diameter2.8300
Maximum cutting diameter2.9500
Maximum depth of cut0.1380
Maximum rpm10600
Minimum cutting diameter2.4800
Number of cutter inserts5
Number of flutes5
Overall height1.5700
Pitch typeNormal
RakePositive
Tool applicationFacing
