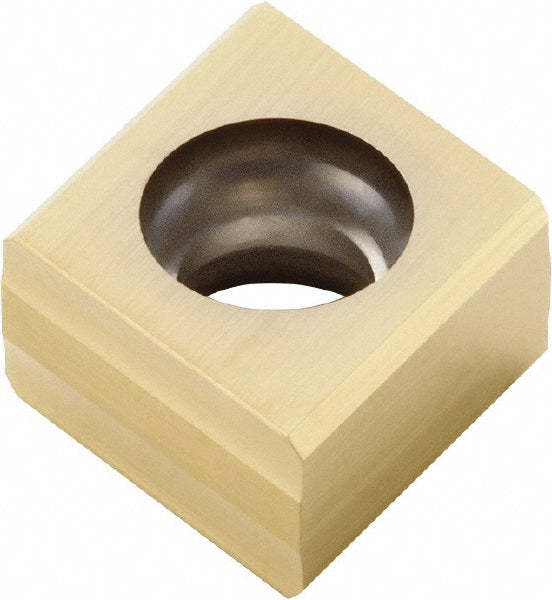

335.18-1305TN4-R08-M11 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02301380
MFR# 02301380ISO/ANSI# 335.18-1305TN4-R08-M11Cat# 335.18-1305TN4-R031-M11Series 335.18-13
$47.06List $60.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeParallelogram
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02301380 is a 335.18-1305TN4-R08-M11 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi code335.18-1305TN4-R031-M11
Chip breakerM11
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR335.18-1924
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size13
Insert size code1305
Insert style335.18
Iso code335.18-1305TN4-R08-M11
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog number335.18-1305TN4-R031-M11
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeParallelogram
Single or double sided insertDouble
StandardsISO
Thickness0.2126
Thickness range0.2000 to 0.2200
Width in1/2
