Seco

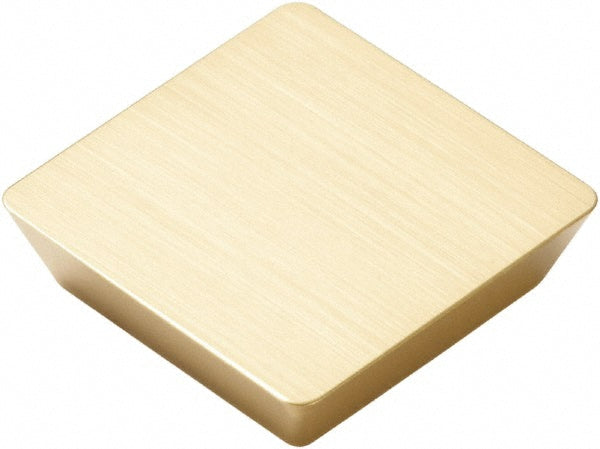

SENN120308T-M12 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02505920
MFR# 02505920ISO/ANSI# SENN120308T-M12Cat# SENN120308T-M12Series SENN-12
$19.12List $24.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02505920 is a SENN120308T-M12 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSENN120308T-M12
Chip breakerM12
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR220.13-12
Cutting edge effective length0.5000
Cutting edge styleT-Land
Hole diameter0.1100
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120308
Insert styleSENN
Iso codeSENN120308T-M12
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSENN120308T-M12
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.4370
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNeutral
Rake angle0
Relief angle20
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
