Seco

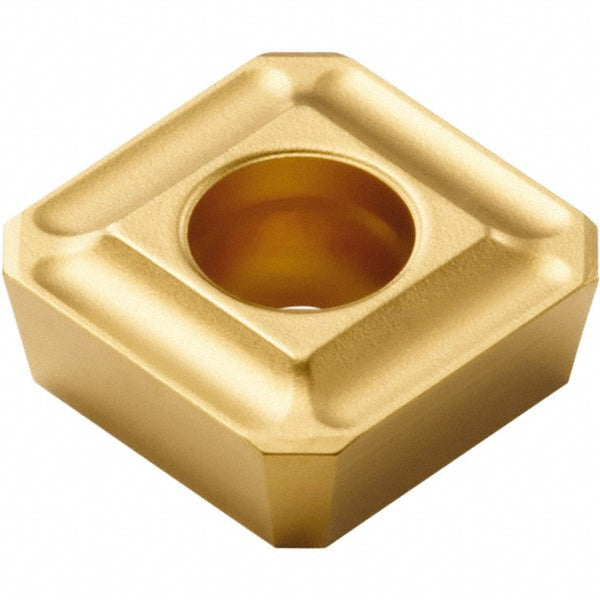

SPMX0703AP-75 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02505932
MFR# 02505932ISO/ANSI# SPMX0703AP-75Cat# SPMX0703AP-75Series SPMX-07
$19.85List $25.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/16
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02505932 is a SPMX0703AP-75 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSPMX0703AP-75
Chip breaker75
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityR218.19-3; R417.19-3; R218.19
Cutting edge effective length0.3126
Cutting edge styleT-Land
Hole diameter0.1142
Included angle degree90
Inscribed circle in5/16
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size07
Insert size code0703
Insert styleSPMX
Iso codeSPMX0703AP-75
Length in5/16
Length range0.0000 to 0.3200
Manufacturers catalog numberSPMX0703AP-75
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3126
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNeutral
Rake angle0
Relief angle11
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in5/16
