Seco

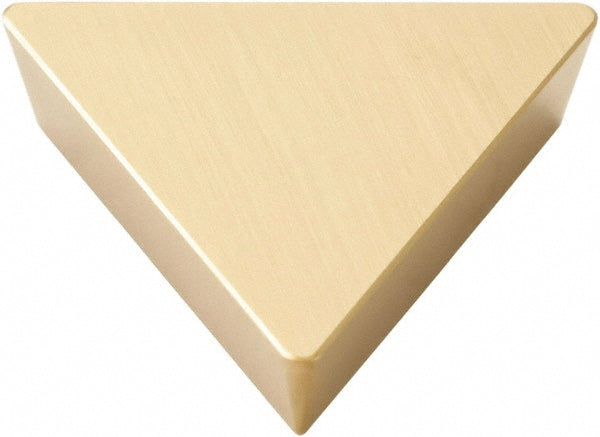

TPUN160308T Solid Carbide Insert, Grade F40M, TiAlN - Seco 02505952
MFR# 02505952ISO/ANSI# TPUN160308TCat# TPUN160308TSeries TPUN-16
$15.66List $20.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02505952 is a TPUN160308T solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeTPUN160308T
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR220.17-16
Cutting edge effective length0.5315
Cutting edge styleT-Land
Included angle degree60
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeTriangle
Insert size16
Insert size code160308
Insert styleTPUN
Iso codeTPUN160308T
Length in17/32
Length range0.5000 to 0.6000
Manufacturers catalog numberTPUN160308T
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.5315
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNeutral
Rake angle0
Relief angle11.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeTriangle
Single or double sided insertSingle
StandardsISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in17/32
