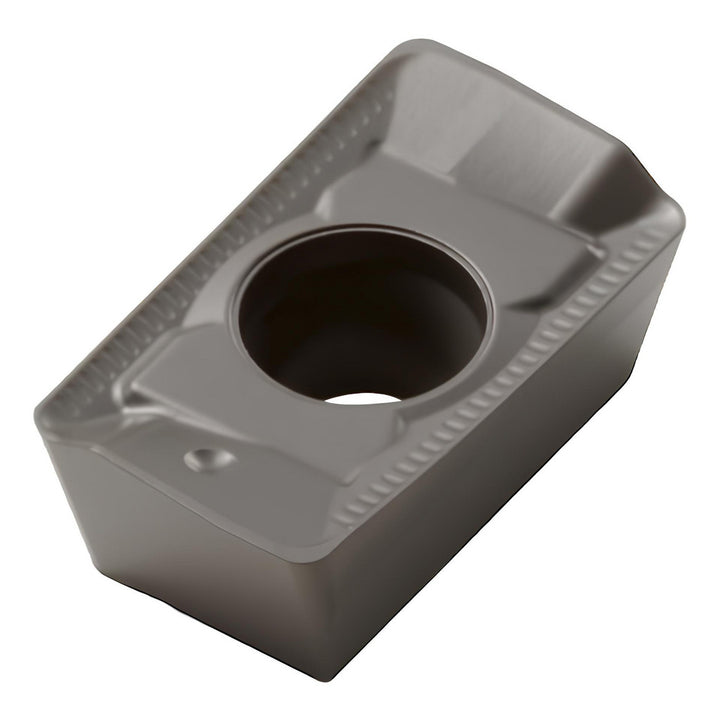

APKX1604PDR-ME12 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566006

Seco

APKX1604PDR-ME12 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02566006

MFR# 02566006ISO/ANSI# APKX1604PDR-ME12Cat# APKX1604PDR-ME12Series APKX-16

$33.59List $43.08 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeMK1500
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 02566006 is a APKX1604PDR-ME12 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.

Specifications

Ansi codeAPKX1604PDR-ME12
Chip breakerME12
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.6598
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604
Insert styleAPKX
Iso codeAPKX1604PDR-ME12
Length0.6598
Length range0.6500 to 0.7000
Manufacturers catalog numberAPKX1604PDR-ME12
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.6220
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle24
Relief angle11.00
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2232
Thickness range0.2200 to 0.2350
Width in3/8
