Seco

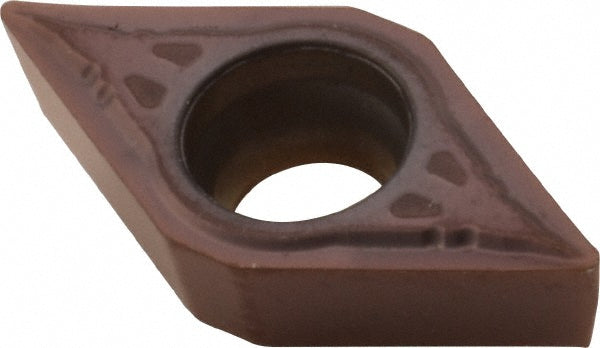

DCMT11T304-F1 Cermet Insert, Grade TP1030, TiAlSiN - Seco 02754854
MFR# 02754854ISO/ANSI# DCMT32.51-F1Series DCMT-F1
$17.27List $22.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeTP1030
MaterialCermet
CoatingTiAlSiN
Description
The Seco 02754854 is a DCMT11T304-F1 cermet indexable insert, grade TP1030, TiAlSiN coated. Suited for steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle55degree
Industry standard numberDCMT32.51-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCermet
Insert shapeDiamond 55
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304-F1
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02754854
Manufacturer gradeTP1030
Material gradeP10; P15
Maximum depth of cut0.4449
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
