Seco
LOEX080408TR-M08 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02827591
MFR# 02827591ISO/ANSI# LOEX080408TR-M08Cat# LOEX080408TR-M08Series LOEX-08
$30.15List $38.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeMK1500
MaterialSolid Carbide
CoatingTiCN
Description

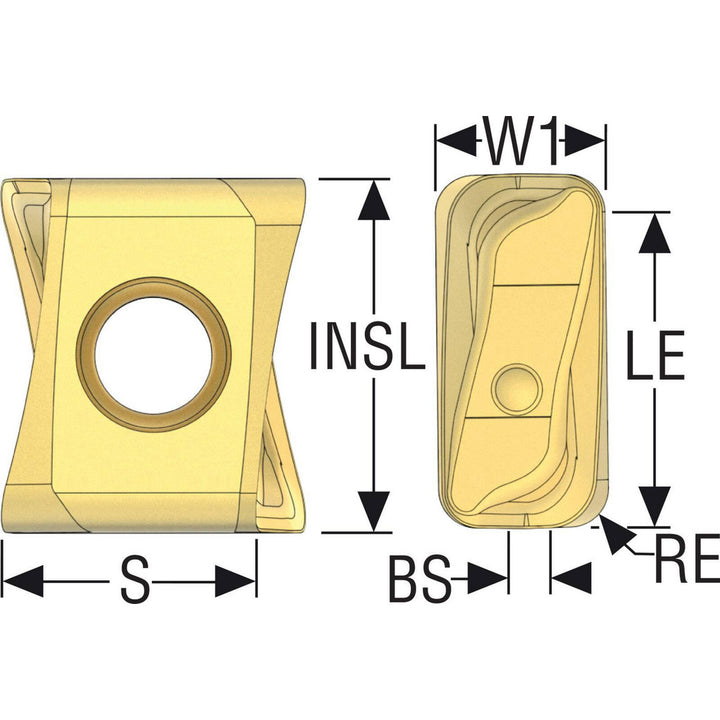

The Seco 02827591 is a LOEX080408TR-M08 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.
Specifications
Ansi codeLOEX080408TR-M08
Chip breakerM08
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.94-08; R220.94-08
Cutting edge effective length0.3268
Cutting edge styleT-Land
Hole diameter0.2028
Included angle degree90
Inscribed circle0.1732
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size08
Insert size code080408
Insert styleLOEX
Iso codeLOEX080408TR-M08
Length0.3661
Length range0.3200 to 0.4000
Manufacturers catalog numberLOEX080408TR-M08
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.3268
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle34
Relief angle0.00
ShapeRectangle
Single or double sided insertDouble
StandardsISO
Thickness0.2598
Thickness range0.2500 to 0.3500
Width0.1732
