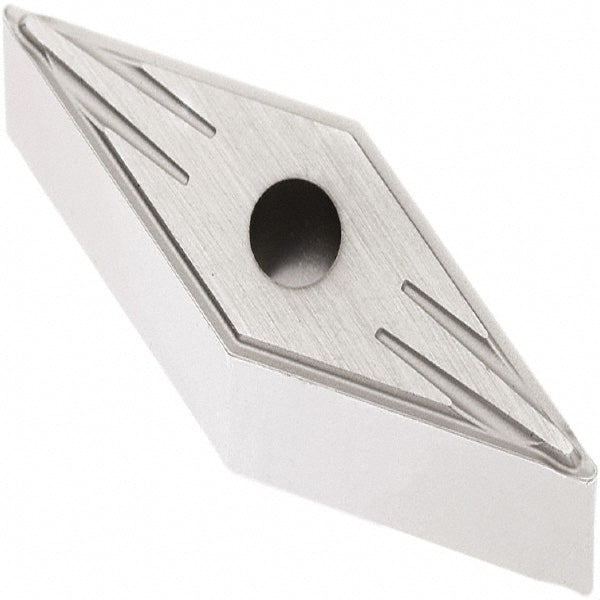

VNMG160404-FF2 Carbide Insert, Grade TP2501, TiCN - Seco 02956350

Seco

VNMG160404-FF2 Carbide Insert, Grade TP2501, TiCN - Seco 02956350

MFR# 02956350ISO/ANSI# VNMG331-FF2Series VNMG-FF2

$34.95List $44.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeTP2501
MaterialCarbide
CoatingTiCN

Description

The Seco 02956350 is a VNMG160404-FF2 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.

Specifications

Chip breakerFF2
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG331-FF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.3070
Insert materialCarbide
Insert shapeDiamond 35
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404-FF2
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02956350
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.6142
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
