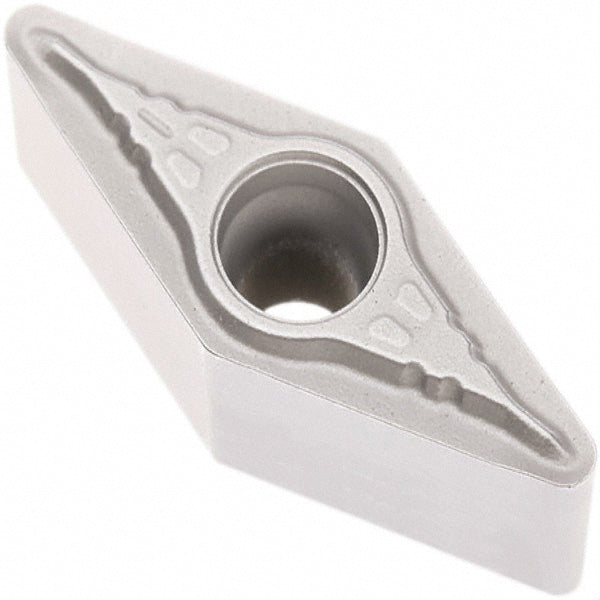

VBMT110208-F1 Carbide Insert, Grade TP2501, TiCN - Seco 02960881
MFR# 02960881ISO/ANSI# VBMT21.52-F1Series VBMT-F1
$22.40List $28.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradeTP2501
MaterialCarbide
CoatingTiCN
Description
The Seco 02960881 is a VBMT110208-F1 carbide indexable insert, grade TP2501, TiCN coated. Suited for steel.
Specifications
Chip breakerF1
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle35degree
Industry standard numberVBMT21.52-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8716
Insert materialCarbide
Insert shapeDiamond 35
Insert size code21.52
Insert styleVBMT
Insert thickness in3/32
Iso codeVBMT110208-F1
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02960881
Manufacturer gradeTP2501
Material gradeP10; P20; P30; P35
Maximum depth of cut0.3543
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle5
Secondary workpiece materialStainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
