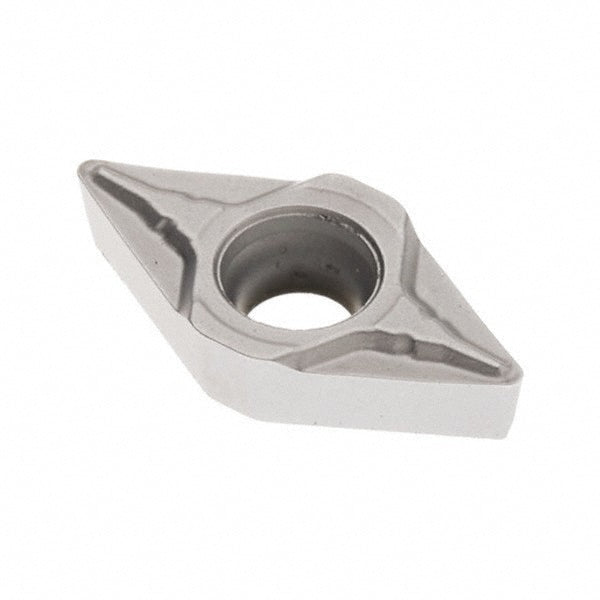

DCMT070208-F1 Carbide Insert, Grade TP3501, TiCN - Seco 03096355

Seco

DCMT070208-F1 Carbide Insert, Grade TP3501, TiCN - Seco 03096355

MFR# 03096355ISO/ANSI# DCMT070208Series DCMT-F1

$13.06List $16.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeTP3501
MaterialCarbide
CoatingTiCN

Description

The Seco 03096355 is a DCMT070208-F1 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeDCMT21.52
Ansi size code21.52
Chip breakerF1
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1142
Included angle55
Industry standard numberDCMT21.52-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6142
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code21.52
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070208-F1
Iso insert codeDCMT070208
Iso size code070208
Lead angle55
Length range0.6000 - 0.6500
Manufacturers catalog number03096355
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.2756
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
