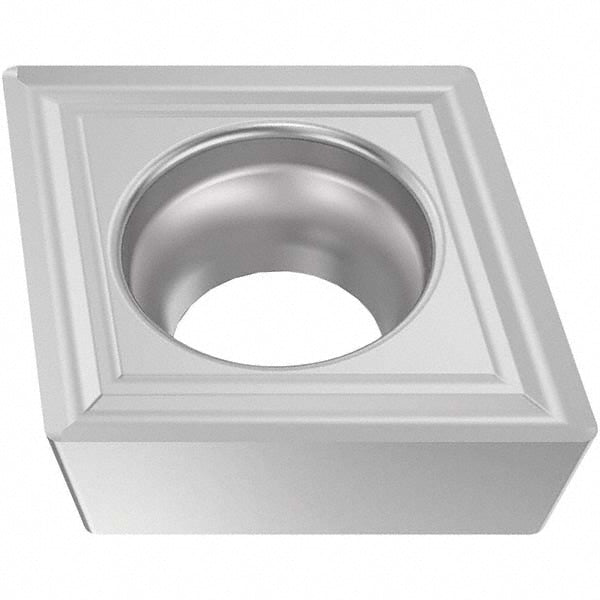

CCMT09T308-M3 Carbide Insert, Grade TM1501, TiCN - Seco 03275943

Seco

CCMT09T308-M3 Carbide Insert, Grade TM1501, TiCN - Seco 03275943

MFR# 03275943ISO/ANSI# CCMT09T308Series CCMT-M3

$13.81List $17.71 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeTM1501
MaterialCarbide
CoatingTiCN

Description

The Seco 03275943 is a CCMT09T308-M3 carbide indexable insert, grade TM1501, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeCCMT32.52
Ansi size code32.52
Chip breakerM3
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - High Toughness
Hole diameter0.1772
Included angle80
Industry standard numberCCMT32.52-M3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3807
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308-M3
Iso insert codeCCMT09T308
Iso size code09T308
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number03275943
Manufacturer gradeTM1501
Material gradeM15; M20; M25
Maximum depth of cut0.3484
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
