Seco

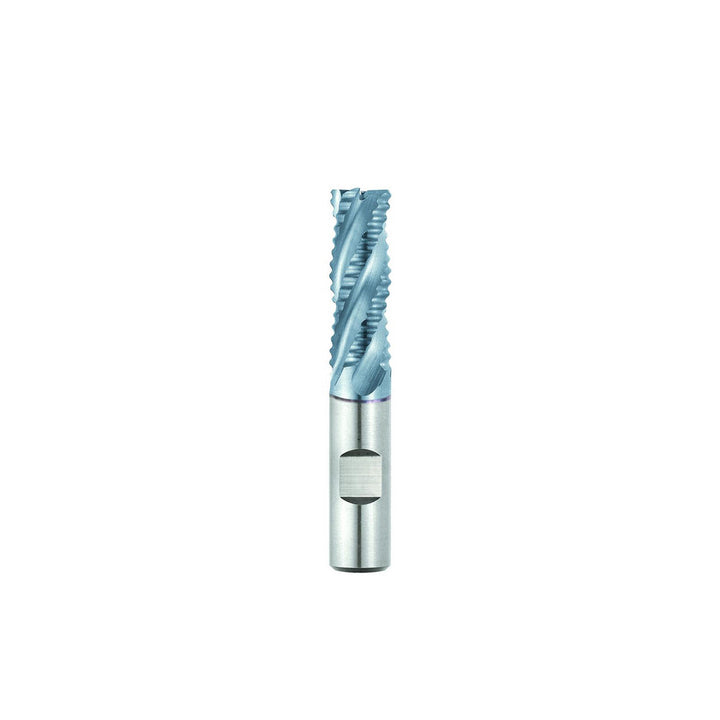

1.7500" 6-Flute Cobalt Roughing End Mill, TiCN - Seco 17013525
MFR# 17013525Series REM710
$375.82List $482.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
MaterialCobalt
CoatingTiCN
Description
The Seco 17013525 is a 1.7500 6-flute Cobalt (M42) roughing end mill with a TiCN finish for longer tool life. Series REM710.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut4.0000
Length typeRegular
Material gradeM42
Maximum helix angle30
Mill diameter1.7500
Mill diameter frac in1-3/4
Mill diameter tolerance+0.006 to -0.000 in
Number of flutes6
Overall length tolerance+0.062 to -0.000 in
Shank diameter in1-1/4
Shank diameter tolerance-0.0001 to -0.0005 in
Single or double endSingle
Variable helixNo
Variable indexNo
