Seco

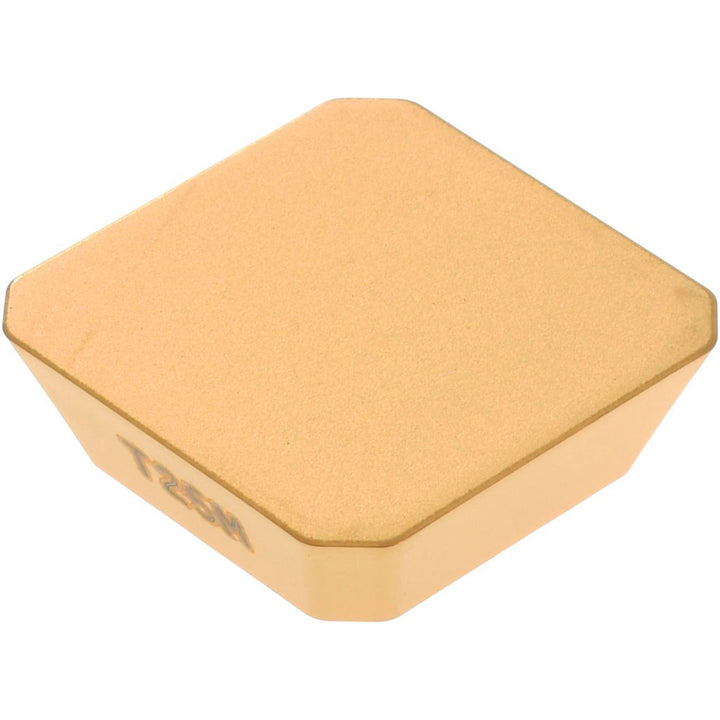

SEKN1504AFTN-M18 Solid Carbide Insert, Grade T25M, TiCN - Seco 74016448
MFR# 74016448ISO/ANSI# SEKN1504AFTN-M18Cat# SEKN1504AFTN-M18Series SEKN-15
$30.32List $38.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
GradeT25M
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 74016448 is a SEKN1504AFTN-M18 solid carbide indexable insert, grade T25M, TiCN coated.
Specifications
Ansi codeSEKN1504AFTN-M18
Chip breakerM18
Coating finishTiCN
Coating processCVD
Corner radius0.0394
Cutter series compatibilitySE15AR
Cutting edge effective length0.6248
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size15
Insert size code1504
Insert styleSEKN
Iso codeSEKN1504AFTN-M18
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberSEKN1504AFTN-M18
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.4567
Multi use toolYes
Number of cutting edges4
RakeNeutral
Rake angle0
Relief angle20.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in5/8
